Dealing with a bad trailer or heavy-duty truck spindle can bring your vehicle to a complete stop. Replacing an entire axle assembly is expensive and causes long downtime for your vehicle. Fortunately, mobile axle spindle repair lets you fix damaged spindle surfaces without removing the whole axle tree.
Here at Hook N Haul, we handle tough roadside mechanical issues across Northeast Ohio. In this guide, you will learn how axle spindles fail, what a proper repair process looks like, and how much money you can save by repairing rather than replacing.
What Is an Axle Spindle and Why Does It Fail?
An axle spindle is the precision-machined shaft located at the end of an axle beam. In simple terms, it holds the inner and outer wheel bearings, grease seals, and brake hub assembly in place. Because it carries the entire weight of your vehicle and load, it operates under high stress and thermal friction.
Spindles fail most often when maintenance is delayed or neglected. For example, a complete spindle failure usually stems from these primary causes:
- Bearing Seizure: When wheel bearings lose lubrication, high heat welds them directly to the spindle shaft.
- Lack of Lubrication: Low grease levels cause metal-to-metal friction, which gouges deep grooves into bearing seats.
- Overloading: Carrying weight beyond your axle’s rated capacity bends the shaft and creates uneven wear patterns.
- Corrosion & Moisture: Water entering the hub creates rust pits, which quickly destroy the smooth seal surface.
Pro Tip: Always check your hub grease temperature with an infrared thermometer during long hauls. A hub running hotter than 160°F indicates bearing friction or low lubricant levels.
Symptoms of a Damaged Axle Spindle
Catching spindle wear early stops catastrophic wheel separation while driving on highways around Cleveland or Akron. As a result, you should watch out for these clear warning signs:
| Symptom | Probable Cause | Urgent Action Required |
| Squealing or Grinding Noise | Dried bearing grease or metal shavings | Inspect bearings and journals immediately |
| Uneven Tire Wear | Bent spindle or worn bearing journals | Check wheel alignment and spindle straightness |
| Smoke or Extreme Heat at Hub | Bearing seizure scoring the spindle | Pull over immediately; tow or call mobile service |
| Loose or Wobbling Wheel | Worn threads or spun bearing race | Do not drive; axle spindle threads need repair |
If you notice any of these signs, pull off the road immediately. Because continuing to drive on a scored spindle will melt your hub assembly, you risk destroying your entire axle tube.
How to Replace or Repair an Axle Spindle: Step-by-Step
When facing spindle damage, fleet operators choose between two main routes: full axle replacement or precision machining and sleeving repair. First, let us look at the exact process used by technicians for mobile axle spindle repair.
Step 1: Vehicle Preparation and Disassembly
Safe repair starts on flat ground with proper safety gear.
- Lift the vehicle axle carefully and secure it on heavy-duty jack stands.
- Next, slide off the wheel, brake drum, and outer hub assembly.
- Wipe away burnt grease and dirt using heavy solvents to inspect the raw metal.
Step 2: Damage Assessment and Measurement

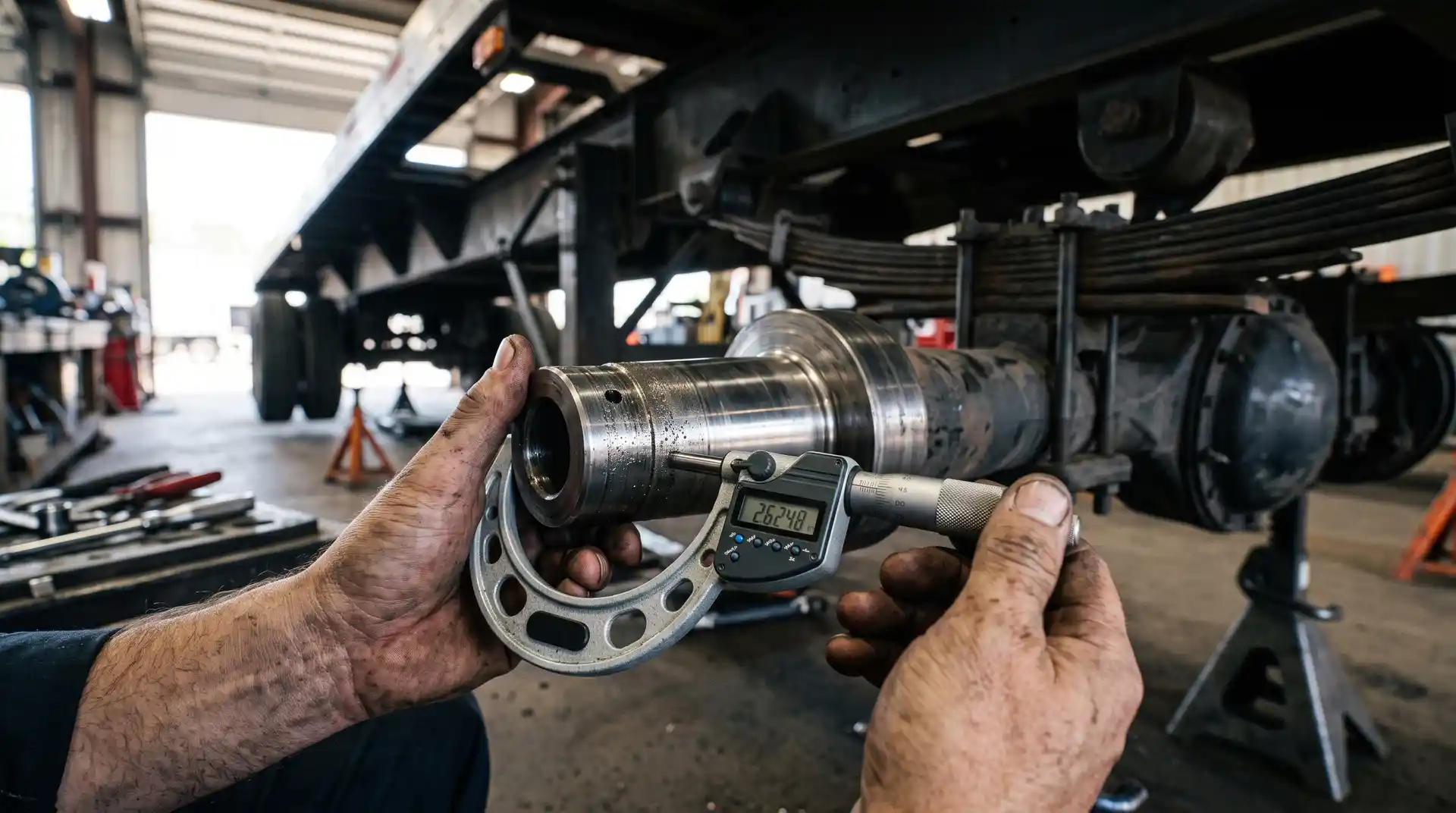

After cleaning, inspect the bearing journals and seal surfaces with a micrometer. Look closely for:
- Deep grooves or heat cracks along the bearing surface.
- Stripped retention nut threads on the spindle tip.
- Out-of-round variance greater than manufacturer limits.
Step 3: Precision Machining or Cutting
Depending on the repair method, the technician will prep the steel:
- Sleeving Method: A portable lathe tool turns down the damaged outer surface.
- Replacement Spindle Tip Method: An alignment jig guides the saw to cut the damaged spindle end clean off the axle tube.
Step 4: Installing the New Spindle Surface
- For precision sleeves, the technician heats a high-strength steel sleeve and press-fits it over the turned shaft.
- For replacement weld-on stubs, an internal rod aligns the new spindle stub before welding it permanently into place.
Step 5: Final Inspection and Reassembly
- Verify that new inner and outer bearing races fit snugly over the journals.
- Install new wheel seals, freshly packed bearings, and a new spindle nut.
- Finally, torque the spindle nut to factory specification and reinstall the tire assembly.
Pro Tip: When welding a replacement spindle stub on a hollow axle tube, use an internal alignment bar that passes through both spindles. Otherwise, even a fraction of a degree in misalignment will destroy tires within a few hundred miles.
Cost Analysis: Axle Spindle Repair vs. Full Axle Replacement
Cost is a major concern for owner-operators and fleet directors. In addition, replacing an entire heavy-duty axle involves high parts expense, long lead times, and massive labor costs to disconnect suspension hangers, brake lines, and electrical wiring.
Therefore, understanding the cost to replace spindles versus installing an entire axle assembly helps you make a smart financial choice:
- Mobile Spindle Repair: Typically costs between $400 and $1,200 per spindle end, including labor and parts. Downtime is usually limited to 2 to 4 hours on-site.
- Full Axle Assembly Replacement: Costs between $1,800 and $4,500+ depending on axle capacity (e.g., 7,000 lbs trailer axle vs. 20,000 lbs commercial drive axle). Total shop downtime can range from 2 to 5 days.
According to economic data published by the U.S. Bureau of Labor Statistics, repair services offer high value by cutting labor-hour requirements for transportation equipment maintenance.
Common Pitfalls to Avoid During Spindle Repairs
Avoiding simple errors during repair work saves you thousands of dollars down the road. Keep these critical mistakes in mind:
- Ignoring Axle Alignment: Welding a new spindle stub without a pass-through alignment jig leads to crooked wheels and rapid tire wear.
- Reusing Damaged Hardware: Old spindle nuts, cotter pins, and scored washers should never go back on the shaft. Always install brand-new hardware kits.
- Over-Torquing the Spindle Nut: Tightening the retention nut too hard pinches the tapered roller bearings, which causes immediate overheating and premature seizure.
- Skipping the Seal Journal: Repairing only the bearing seat while leaving a pitted seal journal causes grease leaks that contaminate your brake shoes.
Frequently Asked Questions
Can you repair stripped threads on an axle spindle?
Yes, technicians restore minor thread damage using a thread-chasing die or a specialized thread repair tool. However, if the threads are completely stripped or sheared off, machining down the spindle tip allows fitting a replacement threaded stub or insert.
Is it safe to weld an axle spindle back together?
Yes, welding is safe only when performed by a certified welder using a full-penetration weld and an internal alignment jig. Because welding a spindle without proper alignment jigs or heat control compromises structural integrity, expert execution is critical.
How long does a mobile spindle repair take?
A professional mobile technician completes a single-end spindle repair or stub replacement on-site in roughly 2 to 4 hours. As a result, your truck or trailer gets back on the road the same day.
Why do trailer axle spindles wear out faster than drive axles?
Trailer spindles experience harsh weather, water submersion (especially on boat trailers), heavy cargo shock loads, and less frequent grease maintenance compared to powered drive axles.
Reliable Mobile Spindle Repairs in Northeast Ohio
Facing a damaged spindle does not mean you need to replace your entire axle tube. Precision mobile repairs restore your bearing journals, fix stripped threads, and keep your fleet moving at a fraction of the cost.
If you are stuck on the road in Northeast Ohio, contact our expert mobile mechanics at Hook N Haul for fast, high-quality axle spindle repair services right where you are parked.
